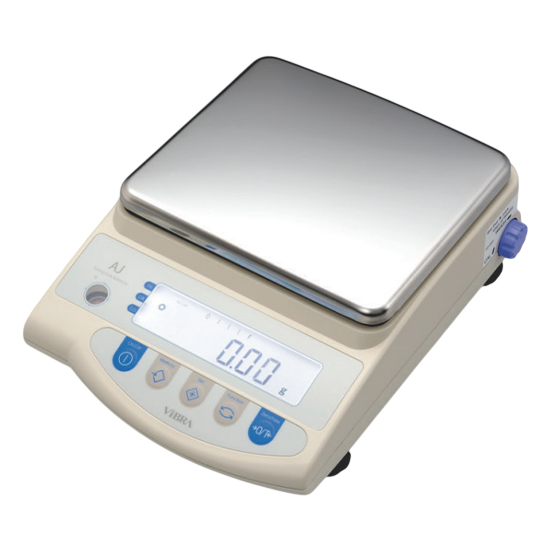

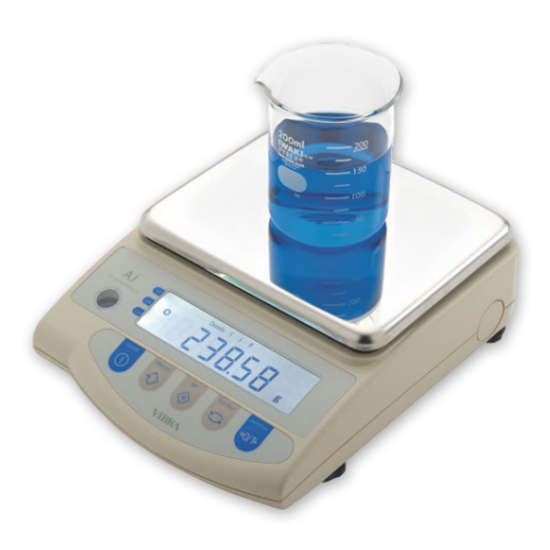

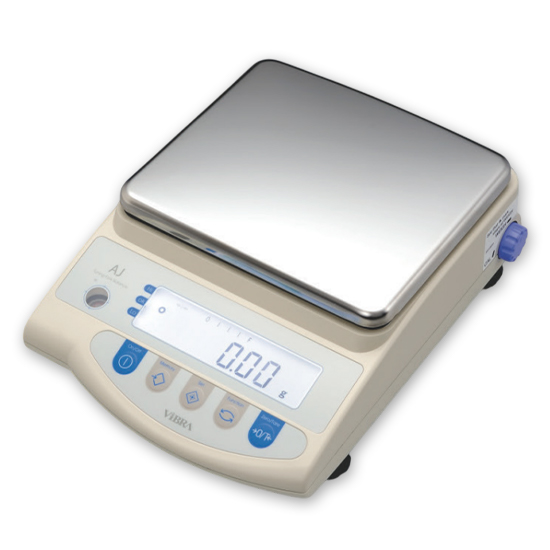

AJ Series Precision Balance
Based on Tuning Fork Technology, the AJ-series Precision Balance offers Superior Performance & Precision much needed in Industrial & Jewellery markets. An extensive range of models offers a wide choice to Customers to meet any need of Precision Weighing in these Industries.
Technical Specifications
| Model | AJ-220E | AJ-320E | AJ-420E | AJ-620E | AJ-820E | AJ-1200E | AJ-2200E | AJ-3200E | AJ-4200E | AJ-6200E | AJ-8200E | AJ-12KE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | 220g | 320g | 420g | 620g | 820g | 1200g | 2200g | 3200g | 4200g | 6200g | 8200g | 12000g |
| Readability | 0.001g | 0.001g | 0.001g | 0.001g | 0.01g | 0.01g | 0.01g | 0.01g | 0.01g | 0.01g | 0.1g | 0.1g |
| Repeatability(s) | 0.001g | 0.001g | 0.001g | 0.001g | 0.01g | 0.01g | 0.01g | 0.01g | 0.01g | 0.01g | 0.1g | 0.1g |
| Linearity (typ.) | ±0.001g | ±0.001g | ±0.001g | ±0.002g | ±0.01g | ±0.01g | ±0.01g | ±0.01g | ±0.01g | ±0.02g | ±0.1g | ±0.1g |
| Pan size | ø118mm | 170x142mm | 180x160mm | |||||||||
| Dimensions | 235x182x165mm (including windshield) | 235x182x75mm | 265x192x87mm | |||||||||
| Weighing units | g, ct | |||||||||||
| Power source | AC 230V DC9V | |||||||||||
| Output | RS-232C (standard) | |||||||||||
| Measuring system | Tuning-Fork Frequency Sensing (MMTS) | |||||||||||
| Tare | Full weighing range | |||||||||||
| Calibration | With external calibration weight | |||||||||||
| Display | LCD (height: 16.5mm) | |||||||||||
| Modes | weighing, counting, % | |||||||||||
| Weight | Approx. 1.3kg | Approx. 3.7kg | ||||||||||
